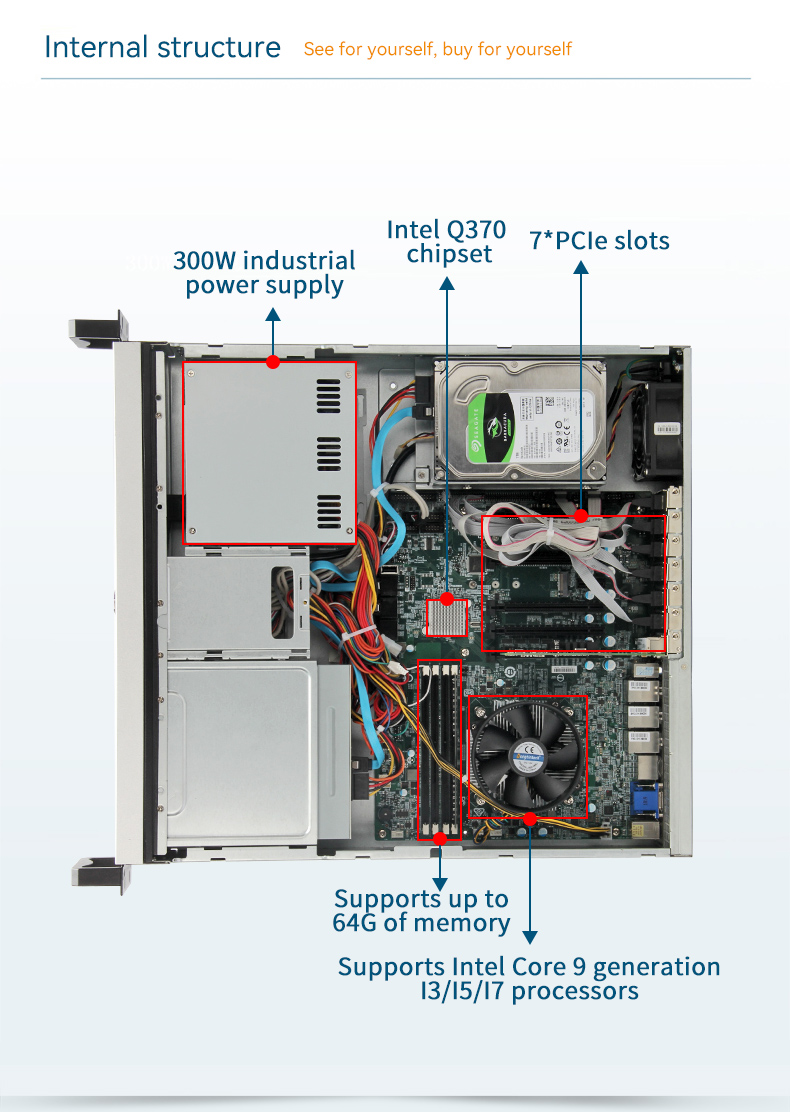

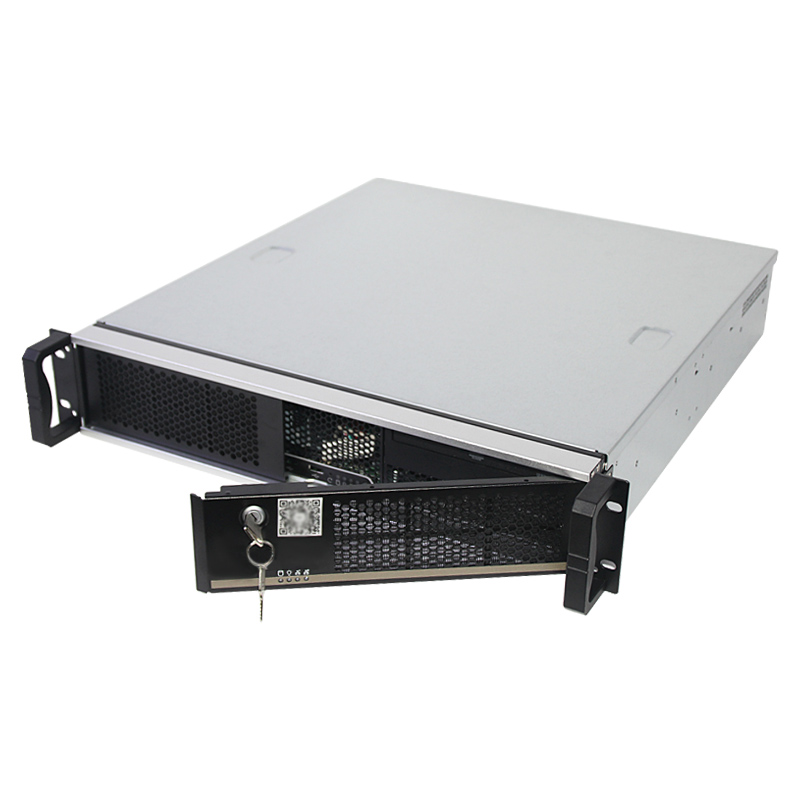

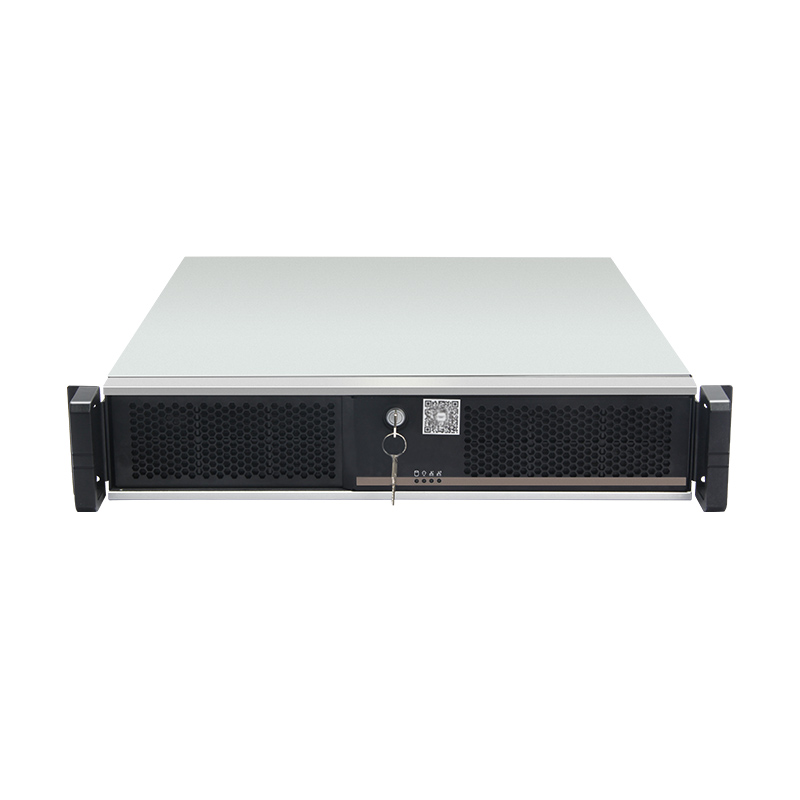

SINSMART Q370 chipset 64G 10com 13usb 2u Rackmount desktop industrial computer SIN-61025-WQ370MA

Model: SIN-610L-BQ670MA

CPU: Intel® Q670 Chipset support Intel® Core™ 12th Generation I3/15/17 Processor.

Memory: 4*DDR4-3200MHz U-DIMM,Support up to 128G memory

Display: 1*VGA interface, 1*HDMI interface,1*DVI interface, 1*eDP connector

Harddisk: 4*SATA III, 1 M.2M-key

Network: 1*Intel® I255-V Gigabit Ethernet port,1*Intel® I219-V Gigabit Ethernet

USB: 11*USB ports(6*USB3.0 (type-A rear I/O), 4* USB2.0, 1*internal vertical USB2.0)

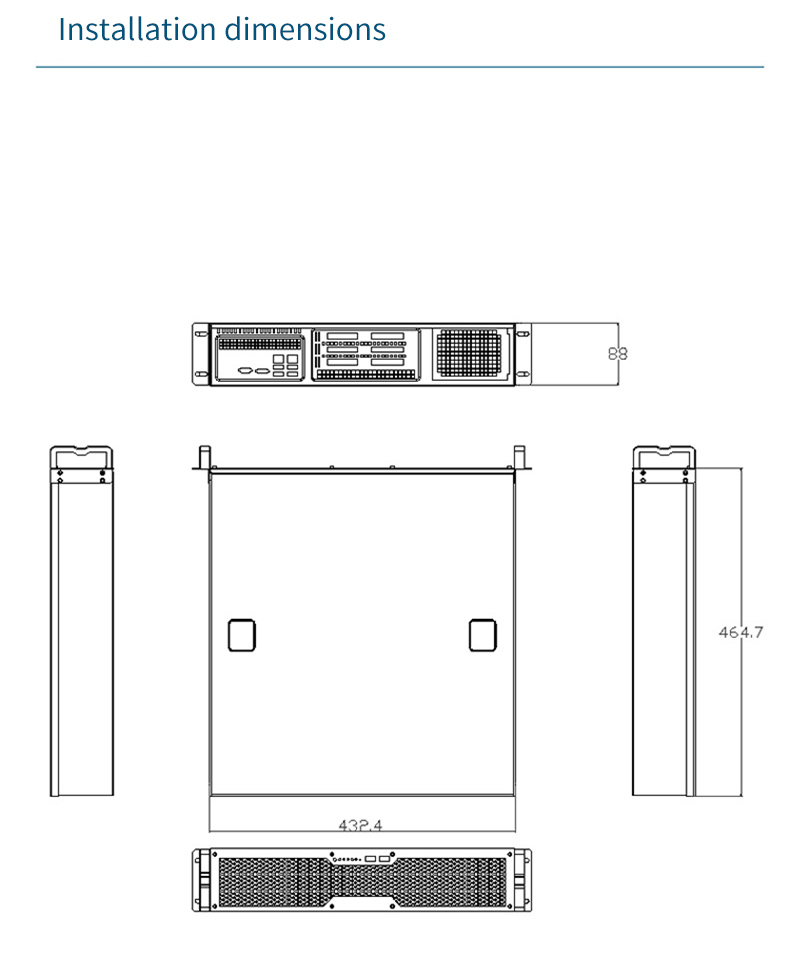

Size: 482*480*177mm,Weight about 23kg

System Support: Windows10/11、Linux

Model: SIN-610L-BQ270MA

CPU: support Intel® Core™ 6/7/8/9 generation i3/i5/i7/i9

Memory: 4*DDR4-2133/2400MHz supports up to 64G memory

Display: 1*HDMI interface, 1*DVI interface, 1*VGA interface, 1*eDP.

Hard disk: 4*SATAllll slots, 1*M.2 m-key (PCIe4xNVMe/ SATA SSD, 2242/2280)

Network: 1*Intel® I255-V Gigabit Ethernet port, 1 *Intel® I219-V Gigabit Ethernet port

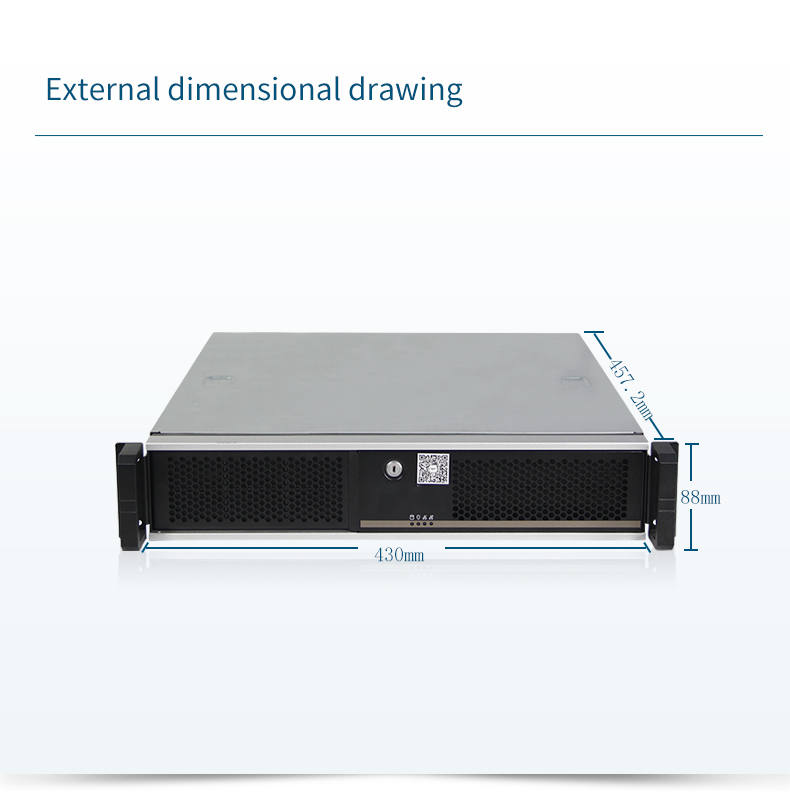

Size: 430*480*177mm

Weight: about 23Kg

Supports system: Window 7, Windows 8.1, Windows 10, Ubuntu, Centos, etc.

Application areas:  defect detection, automatic external labeling machine, etc.cardiac surgery instrument assembly, PCB automatic alignment exposure machine, etc.

Model: SIN-610L-BH81MA

CPU: Intel® Core™ 4th generation I3/I5/I7 processors

Memory: 2*240pin DDR3 1333/1600 DIMM memory slots,support 16G

Display: 1*VGA interface, 1*DVI interface

Hard disk: 1*SATAII interface,1*SATAIII interface, 1*mSATA interface

Power supply: 300W rated power

USB: 2*USB3.0 interfaces, 8*USB2.0 interfaces

Size: 427 *480*177mm Weight about 23kg

Application areas: Industrial motion control,Data computing and storage,Environmental data collection,Electric power environment monitoring
